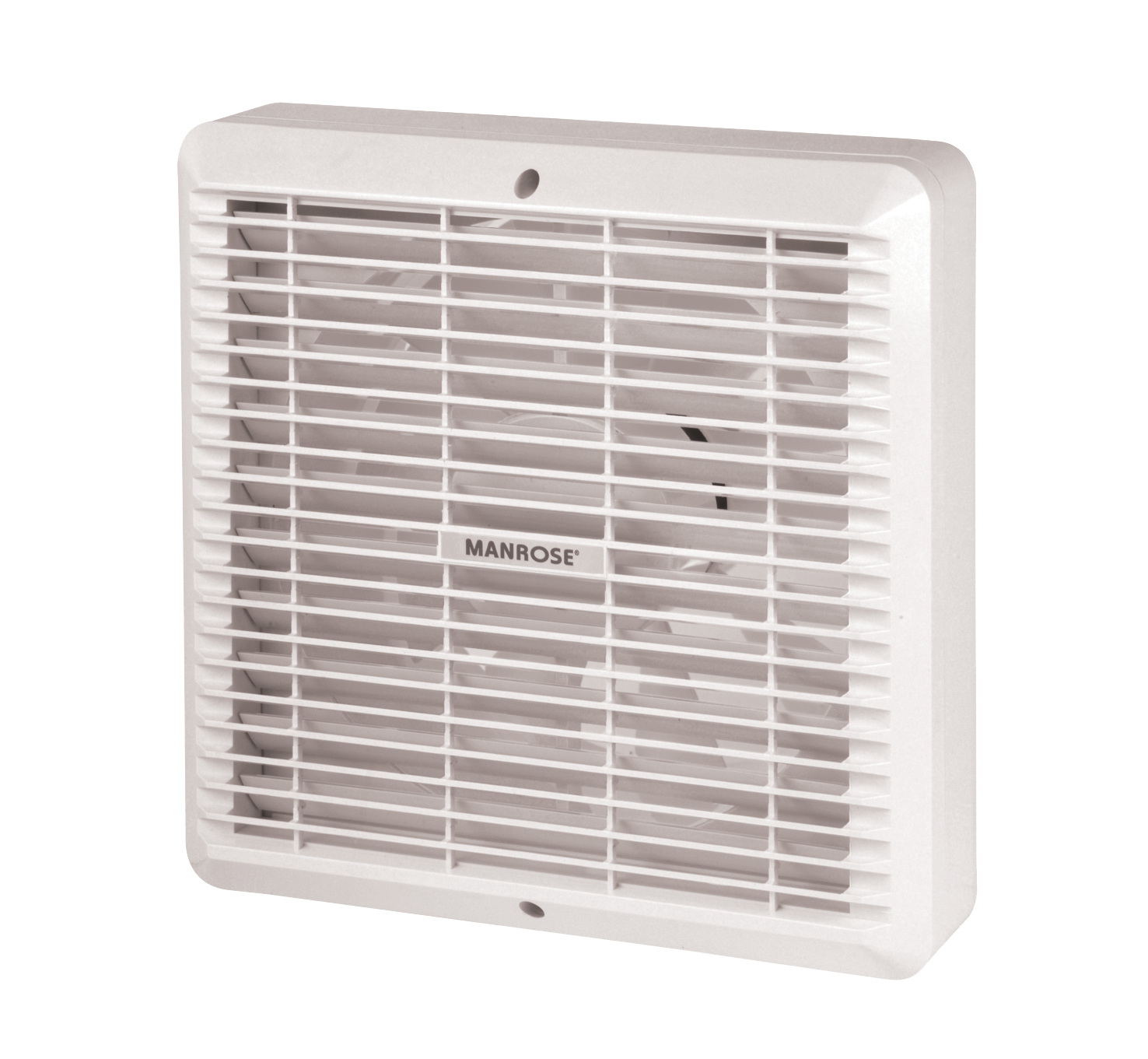

XFS300 Commercial Fan 300mm

Cat. No	XFS300

With a unique, slimline profile of only 62mm the XFS230 range will blend unobtrusively into any surrounding decor.
Designed for wall or ceiling mounting, this series of fans and packs is ideally suited to use in kitchens, utility rooms, pubs, hotels, restaurants, offices, shops and factories.
This range consists of; the basic model with fixed louvres, the manual with internal pullcord operated backdraught shutters and the automatic version with thermo-activated internal shutters which open automatically when the fan is switched on.
Incorporating the latest ventilation technology, this series has an extract rate of 668m³/hr, 185 litres per second.
The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power is provided by a four pole single phase induction motor with pre-oiled bearings, totally enclosed for protection against dust and dirt, for a long, maintenance-free life.
This family of fans has been completed with the addition of the XFS300 range of 300mm (12″) fans, which offer a powerful extract rate of 1100m³/hr, 306 litres per second and are available in the same formats as the XFS230 series.
Designed to comply with the Building Regulations on Ventilation (F1).

Speed 1 (l/s)	305.6
